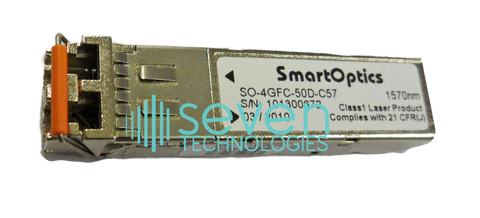

SmartOptics SO-4GFC-50D-C57 4G 1570nm 50km SFP
SmartOptics SO-4GFC-50D-C57
- 4G
- 1570nm
- Up to 50km Reach
- SFP Form Factor
OVERVIEW
The SO-SFP-4GFC-50D-Cxx fiber optical SFP (small form pluggable) transceivers includes an PIN receiver and an uncooled DFB laser at CWDM wavelengths. The modules operate at data rates of 4.25 Gbps, 2.125Gbps, 1.0625 Gbps and 1.250 Gbps..CWDM modules operate at nominal Coarse Wavelength Division Multiplexing (CWDM) wavelengths. Eighteen center wavelengths available from 1271 nm to 1611 nm with each step being 20 nm. The CWDM characteristics are fully compliant to the wavelength parameters specified in ITU standards G.694.2 and G.695. The transceiver is compliant to wavelength requirements from ITU-T G.957 and ITU-T G.695. The SFP transceivers for ITU channels 1271nm to 1611nm can operate over 50 km’s together with the T-3009 MUX/de-MUX family. The module has a duplex LC optical interface and all mechanical characteristics are compliant with the current SFP specification (SFF-8431 and SFF-8432). All SFP modules fulfill the content of the serial EEPROM described in the SFP MSA, Appendix B4, table 3.1, at base data fields (defined as addresses 0 to 63) and extended data fields (defined as addresses 64 to 95). The nominal transmitter output wavelength is stated at the reserved addresses 60-61 according to SFF document SFF-8472 rev 10.4, “Digital Diagnostics Monitoring Interface”. Wavelengths stated in the specification are measured in vacuum. All requirements in this specification must be valid throughout the specified lifetime and operational environmental temperature range unless otherwise stated. The transceiver modules are compliant to RoHS-6/6
PRODUCT FEATURES
- Brocade layer 1 tested and approved
- 4/2/1 Gbps Fibre Channel/FC and 1GE bi-directional data links
- Compliant with SFP MSA
- Hot-pluggable SFP footprint with duplex LC connector
- Uncooled CWDM DFB, directly modulated laser transmitter
- Broadband PIN receiver
- Up to 50km on 9/125um SMF (G.652)
- Single power supply 3.3V
- RoHS6 Compliant
- Class 1 laser product complies with EN 60825-1
- Operating temperature range: 0℃ to 70℃
For more information, please review the SO-SFP-4GFC-50D-Cxx Datasheet (PDF).
